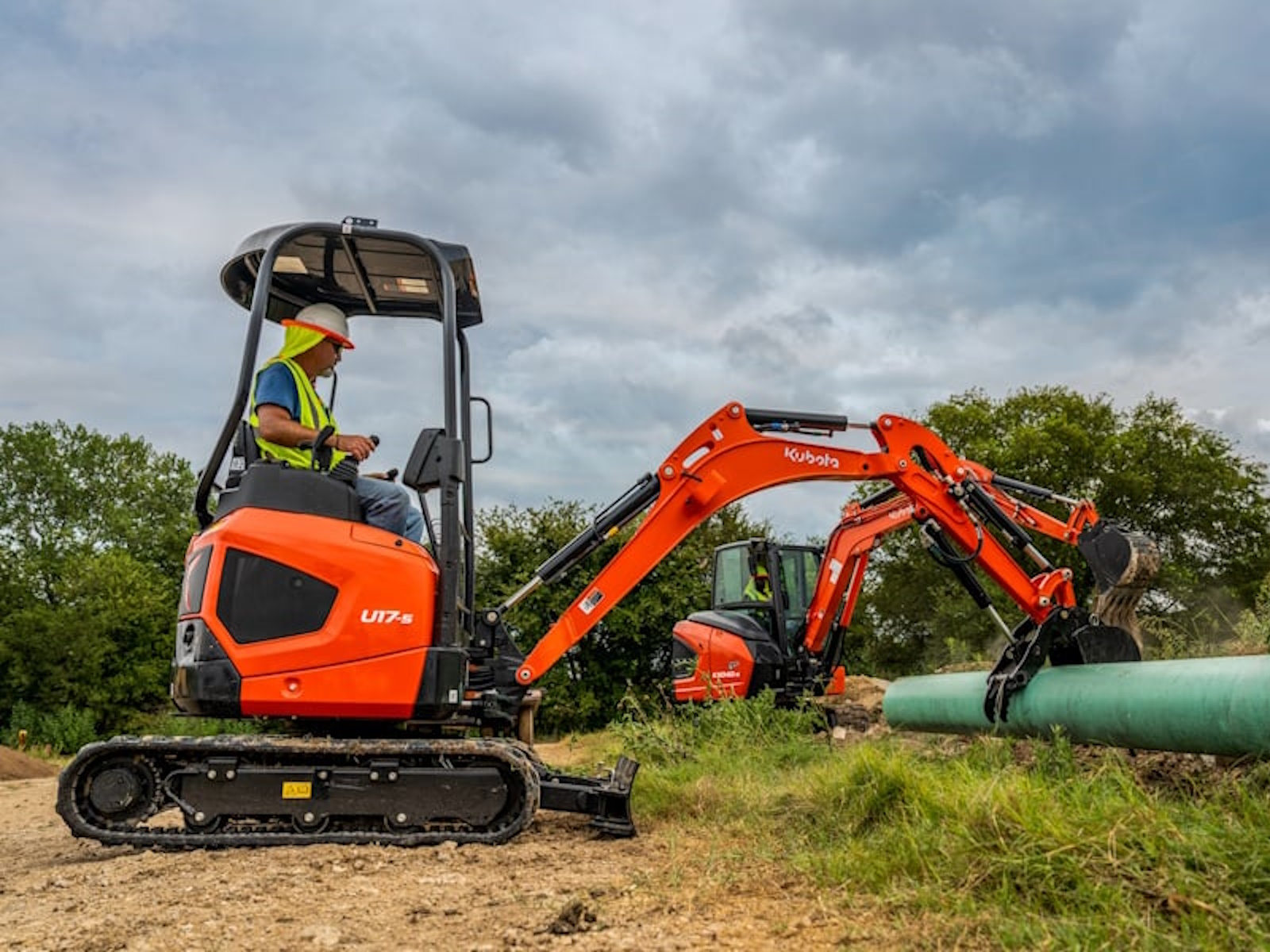

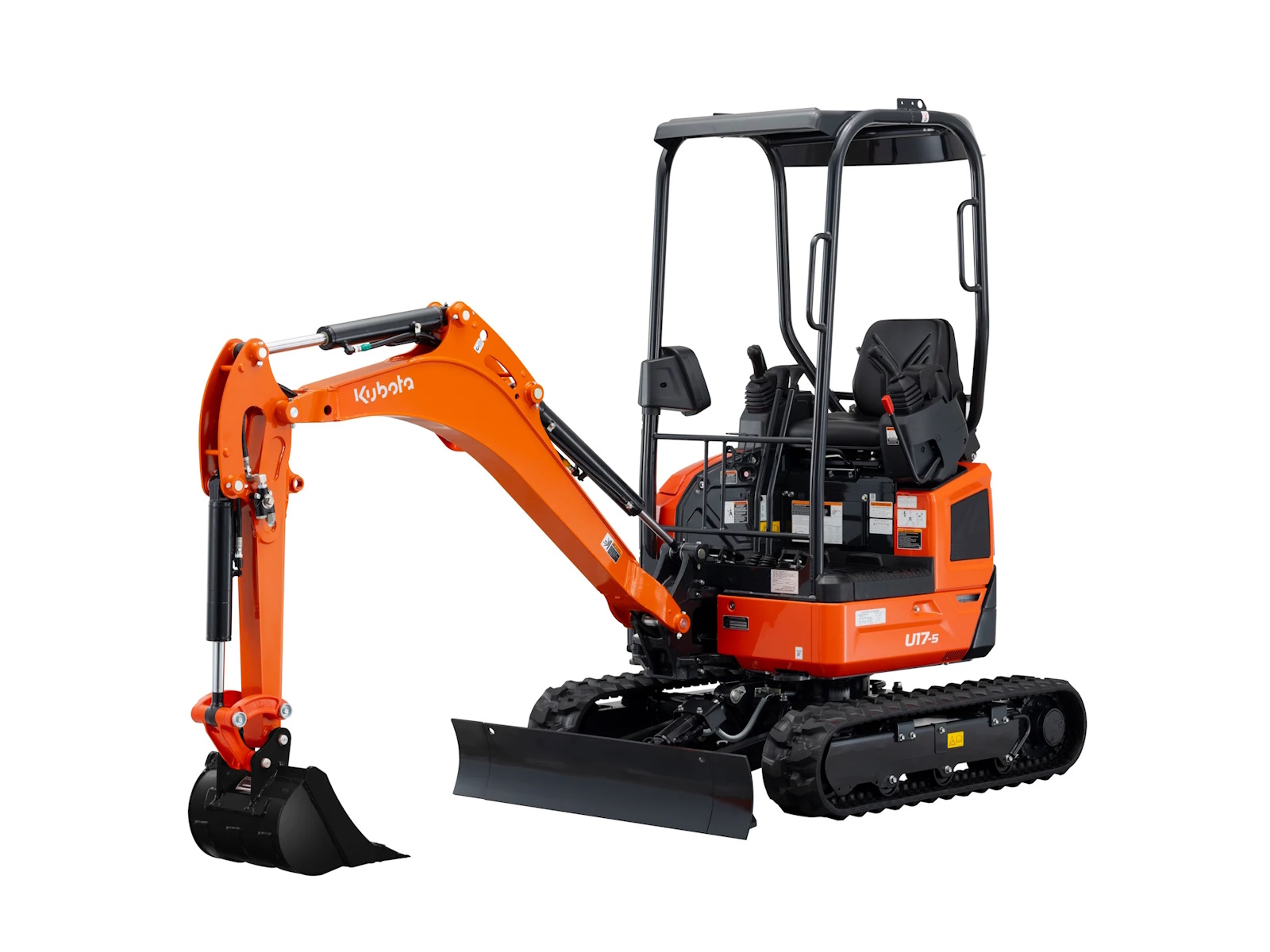

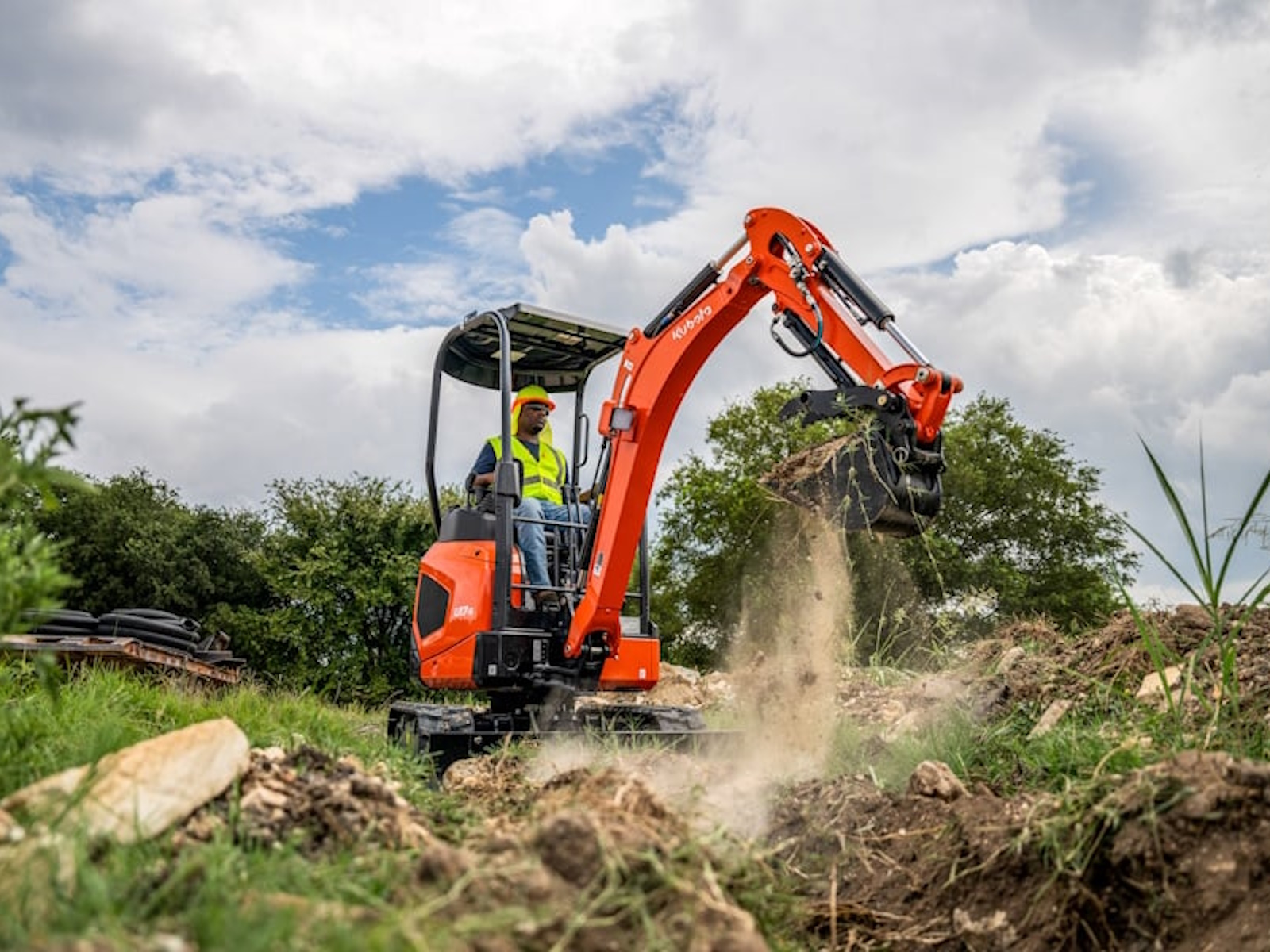

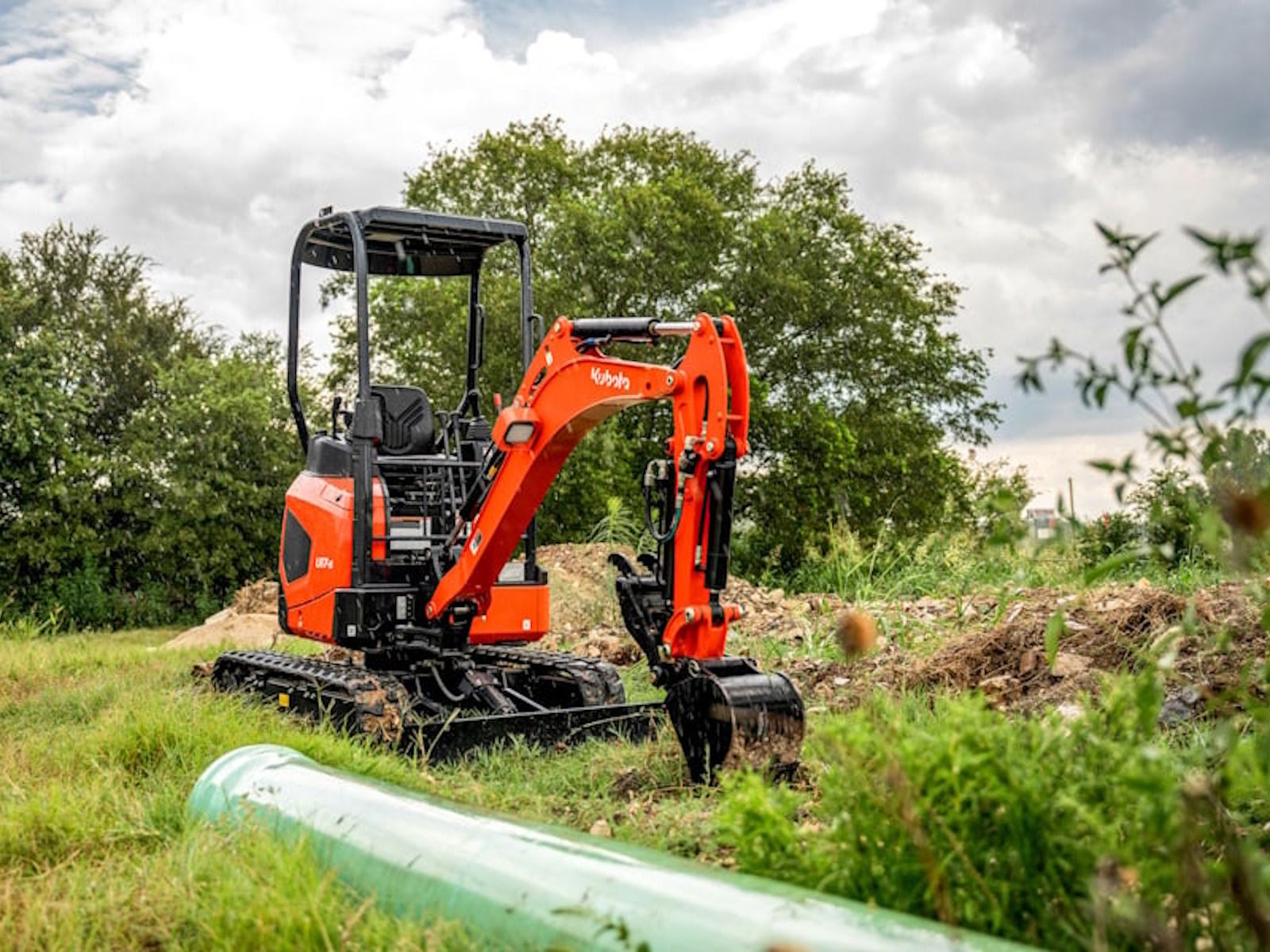

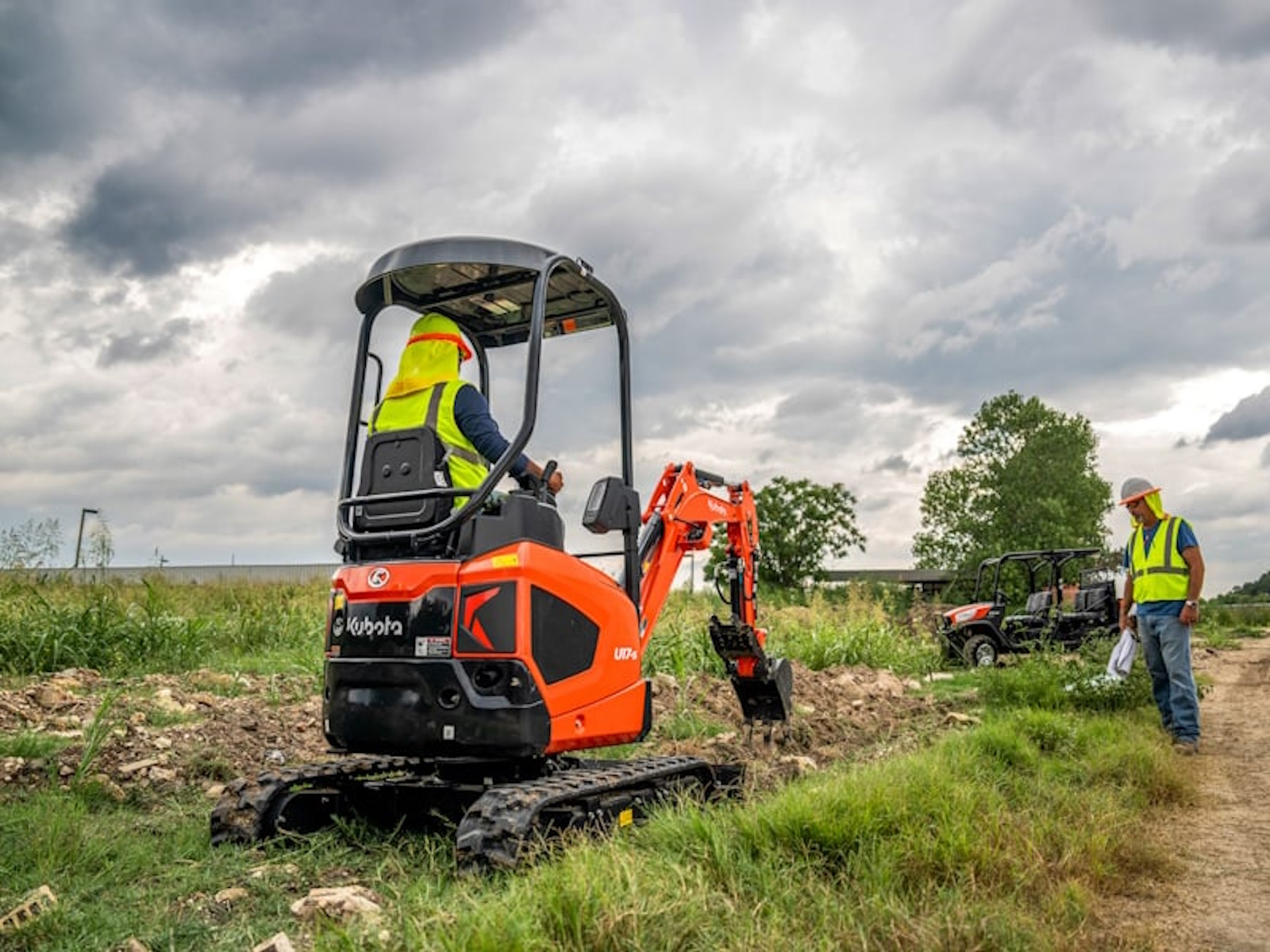

2026 Kubota U17-5 Narrow
U17-5
The U17-5 replaces the U17 with a wide range of performance and comfort features. Keeping all the features you loved from the previous model like variable tracks and standard two-speed, all while adding a standard thumb bracket, increasing the operator space, and moving the auxiliary controls to your hands, makes the U17-5 the perfect machine to get your next job done. The U17-5 also comes standard with KubotaNOW Telematics, giving you access to the critical information you need at all times.
Features May Include:

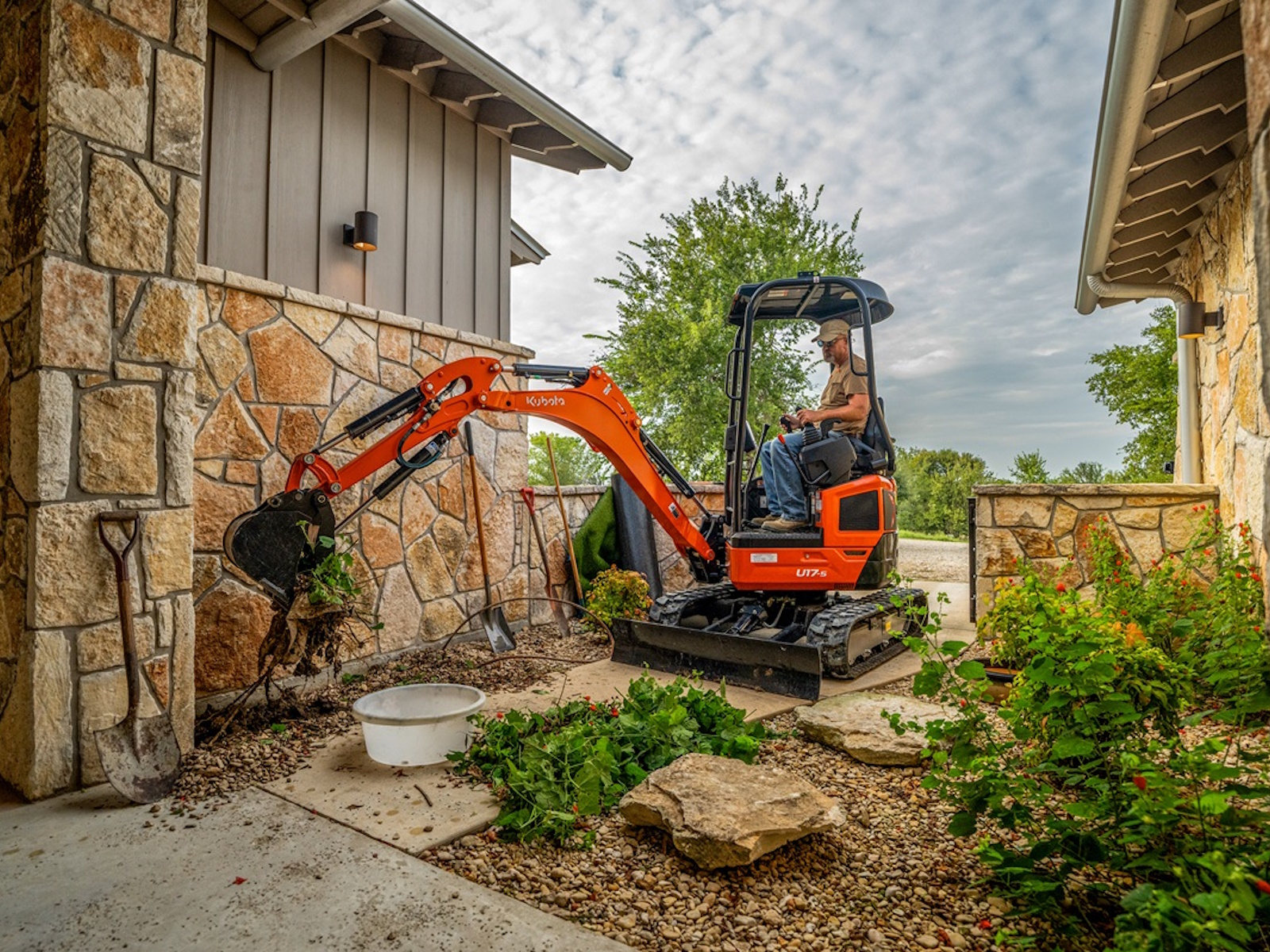

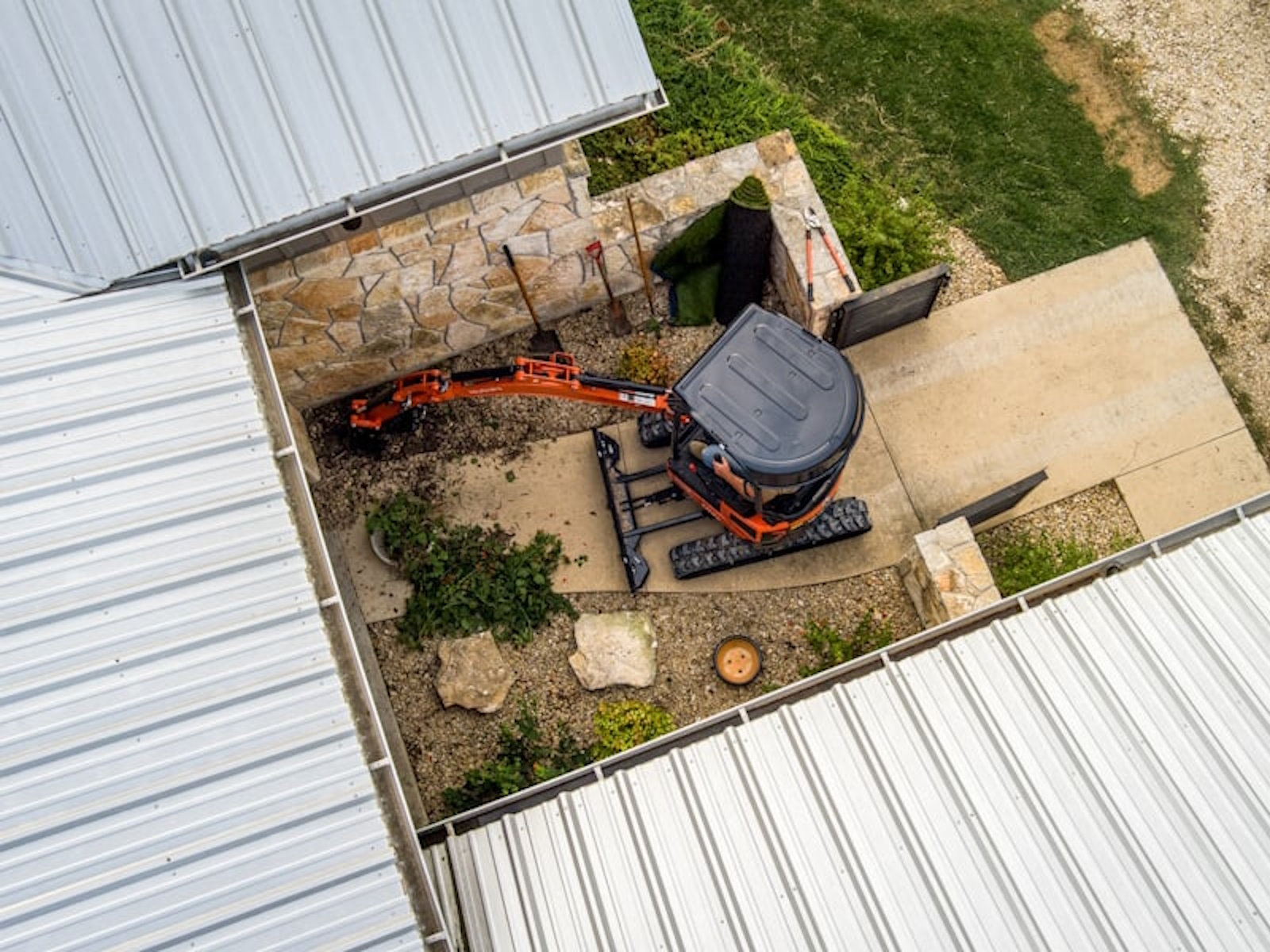

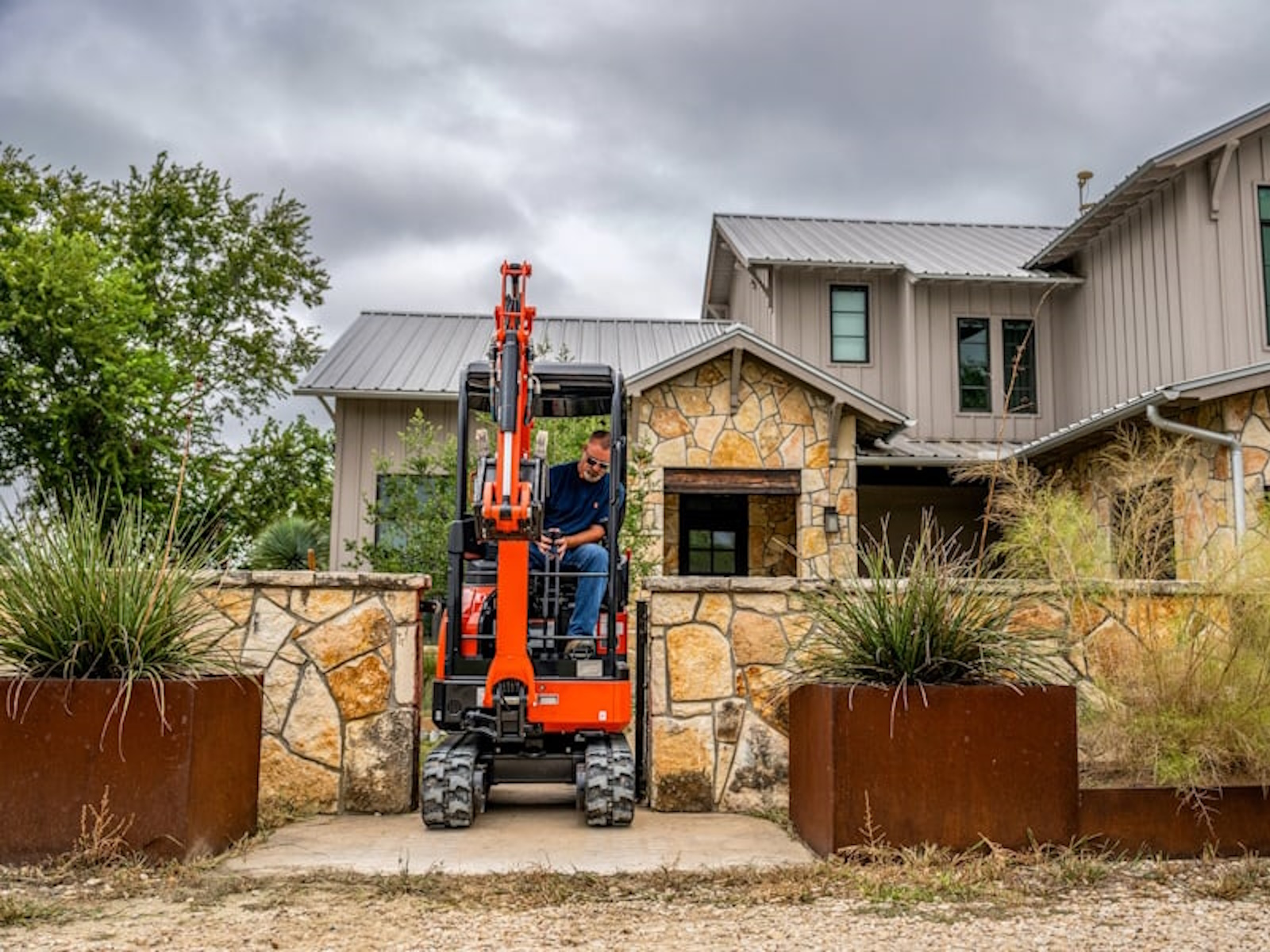

- Expandable / retractable tracks and dozer blade for narrow entry access
- Operator monitor has been repositioned forward for easier view by the operator
- Auto idle feature

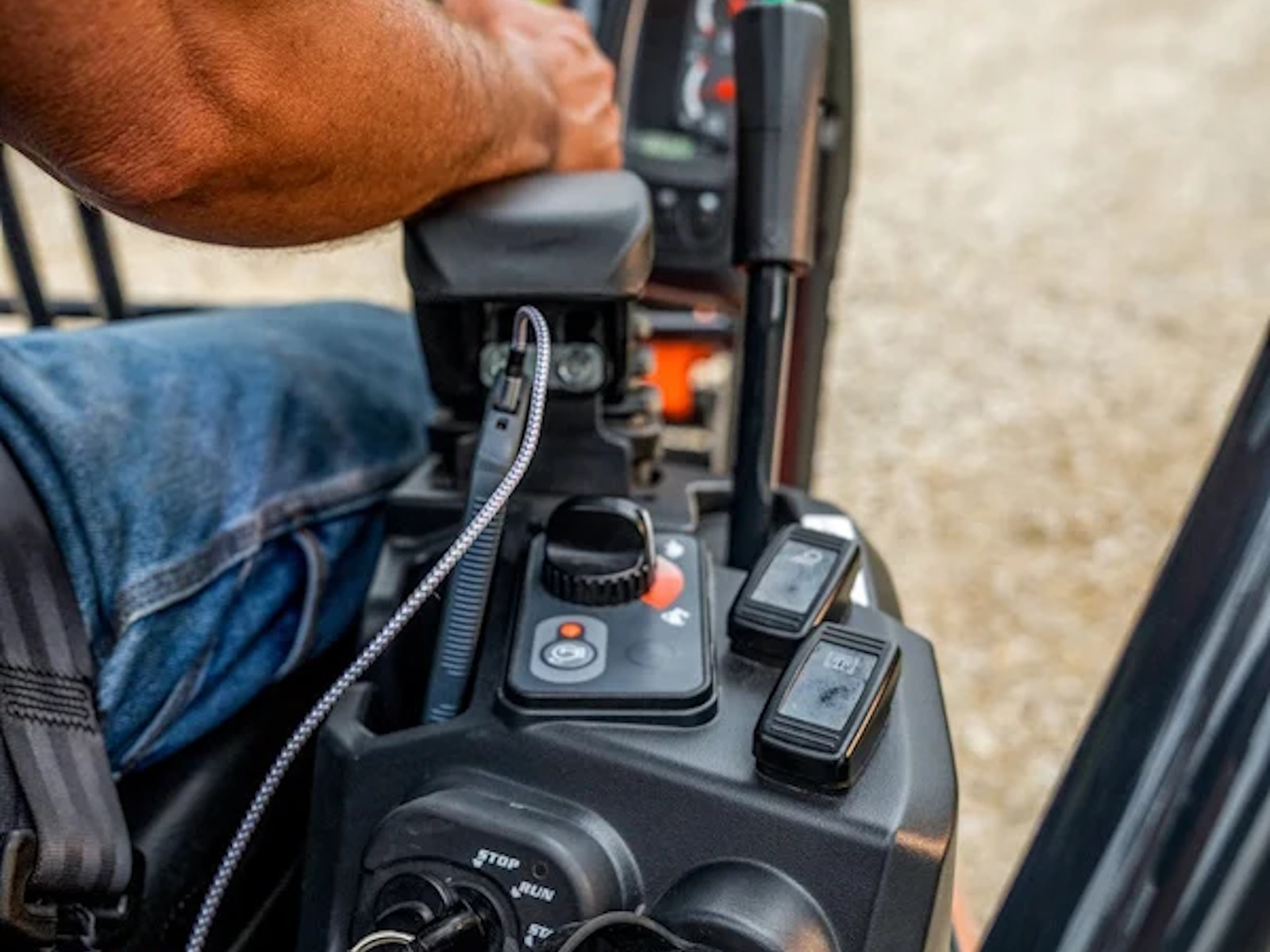

- USB charging port and phone pocket
- Thumb bracket
- Diverter valve
- KubotaNOW telematics pre wired at factory

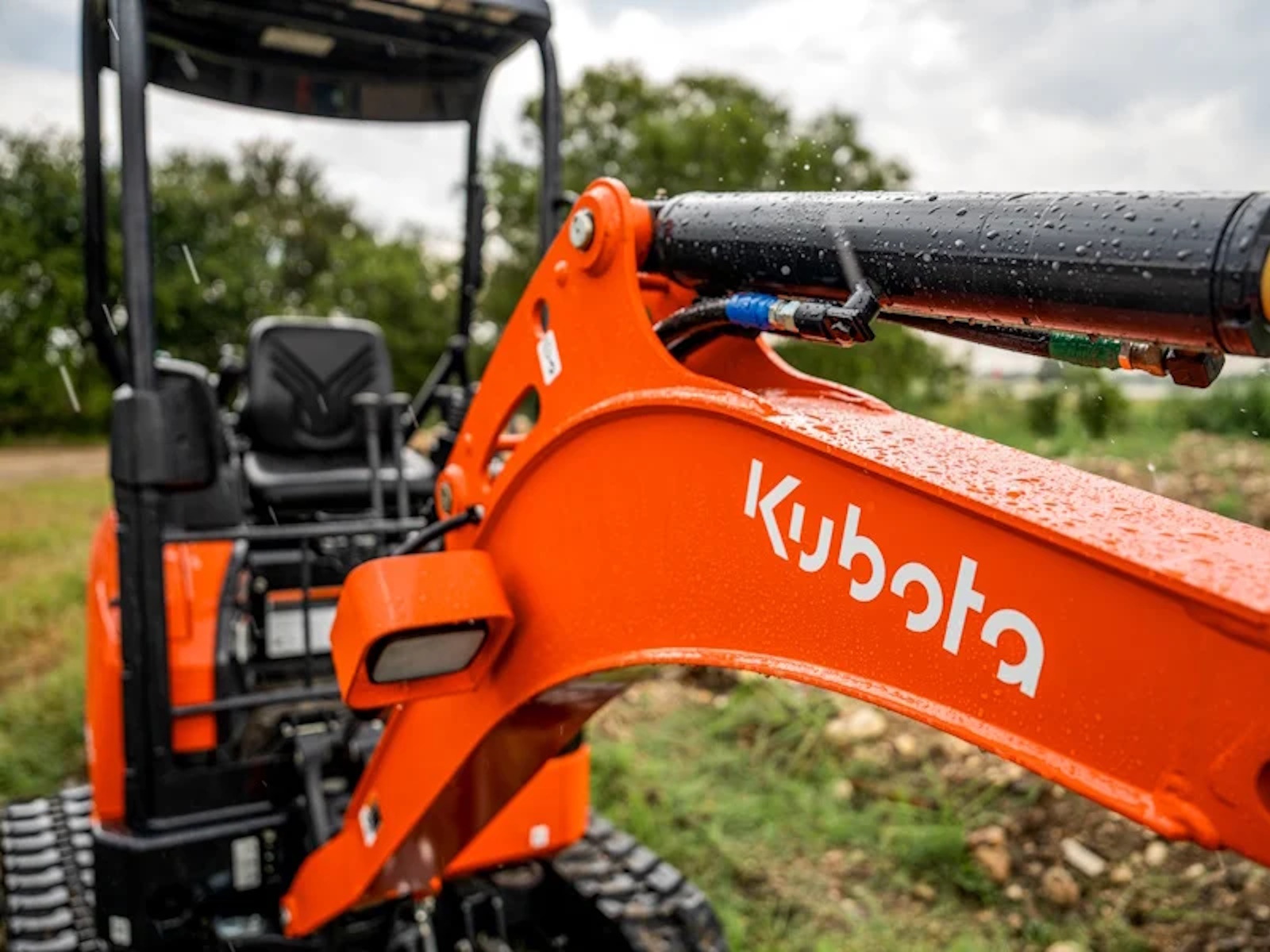

- Boom mounted LED work light
Info
Industry
Agriculture
Make
Kubota
Model
U17-5
Trim
Narrow
Year
2026
MSRP
N/A
Category
Excavator
Subcategory
Compact
Specs
Fuel Type
Gas
Length
Overall: 11 ft 7.7 in | Crawler: 5 ft 2.2 in
Ground Clearance
6.1 in
Notes
Type of ROPS / OPG: Canopy | Type of Tracks: Rubber | Track Gauge: 3 ft 3.0 in | Pump Capacity: 4.6 gpm | Auxiliary Hydraulic Flow: 7.3 gpm | Bucket Breakout Force: 3547.2 lbf | Arm Breakout Force: 1955.9 lbf | Low Travel Speed: 1.4 mph | High Travel Speed: 2.7 mph | Max Traction Force: 3170 lbf | Tumbler Distance: 4 ft 0.4 in | Ground Contact Pressure: 4.0 psi | Right Boom Swing Angle: 63° | Left Boom Swing Angle: 58° | Max Lift Above Groud: 11.0 in | Max Drop Below Groud: 8.1 in | Reservoir Hydraulic Oil: 3.4 Gal | System Hydraulic Oil: 5.8 Gal
Fuel Capacity
5.3 gal
Engine
D902-E4-BH-6EU
Displacement
54.8 cu in
RPM
Unit Swing Speed: 9.4 rpm
Width
Overall: 3 ft 3.4 in | Shoe: 9 in | Blade: 4 ft 3.2 in
Weight
3902 lbs
Height
Overall: 7 ft 9.3 in | Blade: 10.2 in
Power/Horsepower
Gross Engine Power at 2300 rpm: 16.1 hp | Net Engine Power at 2300 rpm: 15.1 hp
